CONSTRUCTION:

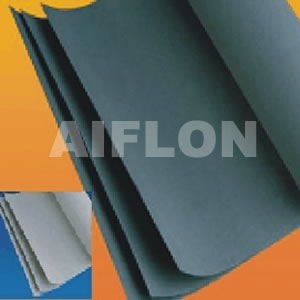

Aiflon 3000 Asbestos emulsion sheet
It is made from synthetic emulsion, asbestos fiber and filling material. Normal used for automobile, agricultural machinery, motorcycle, engineering machinery etc., suitable for lubricating oil under temperature 200¡æ
Aiflon 3000V Vulcanized Asbestos beat sheet
It has smooth face and high density compared with Style 3000
PROPERTIES & APPLICATION:
Gasket materials for explosion engine cylinder gaskets and chemical gaskets
Suitable to sealing lubricating oil at highest temperature 250¡æ
|
Item
|
Style
|
|
3000
|
3000V
|
|
Density g/cm3
|
0.9~1.1
|
1.2~1.4
|
|
Tensile strength ¡YMpa
|
2.5
|
5
|
|
Compressibility ¡Y%
|
40¡à7
|
20¡à5
|
|
Recovery ¡Y%
|
20
|
40
|
|
Stress relaxation ¡ü%
|
30
|
30
|
|
In 20# aviation oil,
150¡æ, 30min
|
Oil absorption
|
¡ü50%
|
¡ü30%
|
|
Thick. increase
|
¡ü6%
|
¡ü12%
|
|
In water
15~30¡æ, 5h
|
Thick. increase
|
¡ü6%
|
¡ü12%
|
Normal color: Grey, Black, White, other color on request
Also available with anti-stick : 3000S, 3000VS
or graphite coating : 3000G, 3000VG
THICKNESS TOLERANCE:
|
Item
|
Tolerance
|
In same sheet
|
|
Thickness
|
¡àmm
|
mm
|
|
0.5
|
0.05
|
0.06
|
|
0.6-0.8
|
0.06
|
0.08
|
|
1-2
|
0.08
|
0.08
|
FORMS OF SUPPLY:
Sheets
Width: 500mm; 1000mm
Length: 500mm; 1000mm; 1200; 1500mm
Thickness: 0.4~2.0mm
Cut gaskets ---G3000, G3000V
Dimensions according to drawings or specifications.
