Description

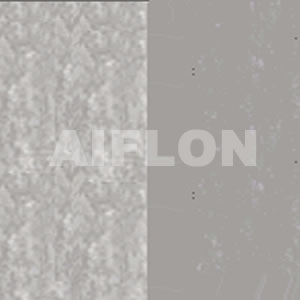

Aiflon Acid-resisting ACAF is made of good asbestos fiber with acid-resisting synthetic rubber compression heating and compression molding it.
APPLICATION:
Mainly used for the equipment in acid, and used as sealing materials of gaskets for the flange of pipeline joints.
PROPERTIES:
|
Item Style
|
3235
|
3225
|
3220
|
|
Horizontal Strain MPa¡Y
|
14
|
11
|
8
|
|
Weight-increasing
|
96.17%( H2SO4) =18mol/L*48h
|
¡ü30%
|
¡ü30%
|
¡ü30%
|
|
36.97%(HCL)=12mol/L*48h
|
¡ü25%
|
¡ü25%
|
¡ü25%
|
|
10% (HNO3)= 1.67mol/L*48h
|
¡ü20%
|
¡ü20%
|
¡ü20%
|
|
Max. Pressure Mpa
|
4.0
|
2.5
|
2.0
|
|
Max. Temperature ¡æ
|
350
|
250
|
200
|
|
Strain-decreasing %¡ü
|
50
|
|
Aging Coefficient
|
0.9
|
|
Softness
|
No Crack
|
|
Density g/cm 2
|
1.8-2.0
|
|
Burning Loss %
|
30
|
|
Compressibility
|
12¡à5
|
|
Elasticity¡Y%
|
40
|
FORMS OF SUPPLY:
Sheets￡o
1500¡á4000mm, 1500¡á2000mm
1500¡á1350mm, 1500¡á1000mm
1270¡á3810mm, 1270¡á1270mm
Thickness: 0.4~6mm
Cut gaskets￡o
ACAF G3220, G3225, G3235
Dimensions according to drawings or specifications and standards
